EV charging solutions

Site Editor 2266

Electric vehicles represented by Tesla are on the rise. From a technical and environmental point of view, the future trend will definitely belong to electric vehicles. At present, for electric vehicles, battery life and charging are the two most difficult problems. The idea of ​​a German with a wide open brain solves the problem of charging electric cars!

Turn half of Berlin's street lights into charging piles

In order to make the charging pile at your fingertips, Ubitricity, a German startup, designed a solution to convert street lights into charging piles, allowing the car to replenish power anytime, anywhere.

Founded in Berlin in 2008, the company has more than 30 startups and has built an electric vehicle charging infrastructure in large and small places in Berlin. In order to solve the charging problem, the concept proposed by Ubitricity is called: charging at the side of the street light, simply turning the street light into a charging pile.

The process from charging to paying is very simple and requires only 3 very simple steps:

  1. Connect to the charging facility, the smart charging line automatically identifies and authorizes the registered users and unlocks the outlet.
  2. Charging, through the mobile measurement technology, the smart cable accurately measures the amount of charge and bills related data, and sends data to the power company via wireless.
  3. Pay, all charging data will be accurately recorded and organized into bills and sent to the user's mobile terminal.



Product Description

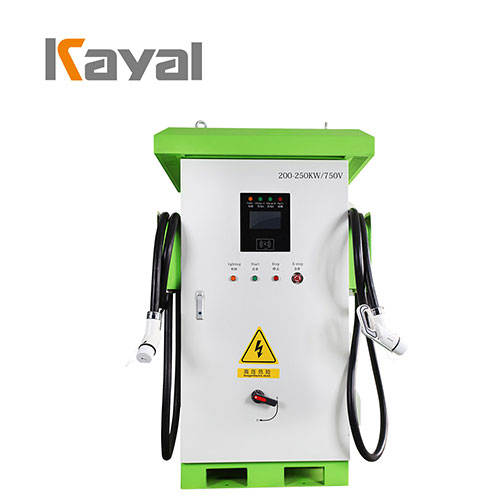

KYCP-DC-240kw-D Double gun DC charging pile

EV charging solutions_D Double gun DC charging pile

Overview

  • Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
  • The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is <5%. The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high. The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep technology and the wheeling technology ensure the high-efficiency operation of the system;
  • Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
  • A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available; Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and operating status;
  • The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
  • Module hot swap technology makes maintenance more convenient;
  • Working environment temperature -20+50 °C.

Technical Parameter

Product number   KYCP-DC-240KW
Detailed rated power 240KW
specifications
Charging equipment User Interface 7 inch LCD color
    display touch screen
  installation Floor-standing
  Way of routing Down and down
  Equipment size
  Input voltage AC380V±20%
  Input frequency 45~65Hz
  The output voltage 200V-750V 200-750V
      (constant power)
  Single gun output 0-320A 0-600A
  current range
  Cable length 5M
  Measurement accuracy Level 0.5
Electrical index Current limit ≥110%
  protection value
  Voltage regulation ≤±0.5%
  accuracy
  Steady flow accuracy ≤±1%
  Ripple coefficient ≤±0.5%
  effectiveness ≥94.5%
  Power factor ≥0.99 (50% load or more)
  Harmonic ≤5% (50% load or more)
  content THD
feature design HMI 7 inch LCD color display
    touch screen,
     LED indicator
  Charging mode Auto full / fixed power
     / fixed amount
    / fixed time
  payment method Credit card payment
     / APP payment
     / scan code payment
  Communication Ethernet 2/3/4G (optional)
  Interface
Safety design Executive standard GB\T 20234, GB/T 18487,
     GB/T 27930, NB\T 33008
  security function Charge gun temperature detection,
    overvoltage protection,
     undervoltage protection,
     overload protection,
    short circuit protection,
    grounding protection,
    over temperature protection,
    low temperature protection,
    insulation monitoring protection,
    polarity reverse connection protection,
     lightning protection,
     emergency stop protection,
    leakage protection
Environmental Operating -25°C~+50°C
indicators temperature
  Working humidity 5%~95% non-condensing cream
  Working elevation <3000m
  Protection level IP54
  cooling method Forced air cooling
  Noise control ≤60dB
  MTBF 100,000 hours

Scope of application

Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics car, etc.) city public charging station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places, etc.; intercity highway charging stations, etc.



Double gun DC charging pile KYCP-DC-180kw-D

EV charging solutions_Double gun DC charging pile

Overview

  • Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
  • The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
  • The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
  • The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep
  • technology and the wheeling technology ensure the high-efficiency operation of the system;
  • Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
  • A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
  • Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and operating status;
  • The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
  • Module hot swap technology makes maintenance more convenient;
  • Working environment temperature -20+50 °C.

Technical Parameter

Product number   KYCP-DC-180KW
Detailed specifications rated power 180KW
Charging equipment User Interface 7 inch LCD color
    display touch screen
  installation Floor-standing
  Way of routing Down and down
  Equipment size
  Input voltage AC380V±20%
  Input frequency 45~65Hz
  The output voltage 200V-750V 200-750V
       (constant power)
  Single gun output  0-320A 0-600A
  current range
  Cable length 5M
  Measurement accuracy Level 0.5
Electrical index Current limit protection value ≥110%
  Voltage regulation accuracy ≤±0.5%
  Steady flow accuracy ≤±1%
  Ripple coefficient ≤±0.5%
  effectiveness ≥94.5%
  Power factor ≥0.99 (50% load or more)
  Harmonic content THD ≤5% (50% load or more)
feature design HMI 7 inch LCD color display
     touch screen,
    LED indicator
  Charging mode Auto full / fixed power
     / fixed amount
     / fixed time
  payment method Credit card payment
     / APP payment
    / scan code payment
  Communication Interface Ethernet 2/3/4G (optional)
Safety design Executive standard GB\T 20234,
    GB/T 18487,
    GB/T 27930,
    NB\T 33008
  security function Charge gun temperature detection,
     overvoltage protection,
    undervoltage protection,
    overload protection,
    short circuit protection,
    grounding protection,
    over temperature protection,
    low temperature protection,
    insulation monitoring protection,
     polarity reverse connection protection,
    lightning protection,
    emergency stop protection,
    leakage protection
Environmental  Operating temperature -25°C~+50°C
indicators
  Working humidity 5%~95% non-condensing cream
  Working elevation <3000m
  Protection level IP54
  cooling method Forced air cooling
  Noise control ≤60dB
  MTBF 100,000 hours

Scope of application

Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics car, etc.) city public charging station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places, etc.; intercity highway charging stations, etc.



KYCP-DC-60KW Douoble gun DC charging pile

EV charging solutions_Douoble gun DC charging pile

Technical Parameter

Product number   KYCP-DC-60KW
Detailed specificatio rated power 60KW
Charging equipment User Interface 4.3 inch LCD color display
     touch screen
  Installation method Floor-standing
  Way of routing Down and down
  Equipment size 635*423*1600(mm)
  Input voltage AC380V±20%
  Input frequency 45~65Hz
  The output voltage 200V-500V
  Single gun output  0-120A
  current range
  Cable length 4/5m
  Measurement accuracy Measurement accuracy
Electrical index Ucurrent limit  ≥110%
  protection value
  Voltage regulation  ≤±0.5%
  accuracy
  Steady flow accuracy ≤±1%
  Ripple coefficient ≤±0.5%
  effectiveness ≥94.5%
  Power factor ≥0.99
  Harmonic content THD ≤5%
feature design HMI 4.3 inch LCD color display
     touch screen
  Charging mode Auto full
    / fixed power
     / fixed amount
    / fixed time
  payment method APP payment
    / credit card payment
     / scan code payment
  Communication Ethernet 2/3/4G (optional)
   Interface
Safety design Executive standard GB\T 20234、GB/T 18487、
    GB/T 27930、NB\T 33008
  security function Charge gun temperature detection,
     overvoltage protection,
    undervoltage protection,
    overload protection,
    short circuit protection,
    grounding protection,
    over temperature protection,
    low temperature protection,
    insulation monitoring protection,
     polarity reverse connection protection,
     lightning protection,
    emergency stop protection,
    leakage protection
Environmental Operating  —25℃~+50℃
 indicators temperature
  Working humidity 5%~95% non-condensing cream
  Working elevation <3000m
  Protection level IP54
  cooling method Forced air cooling
  Noise control ≤60dB
  MTBF 100,000 hours
