| Detailed specifications | rated power | 7KW |
| Charging equipment | User Interface | Digital tube, LED |

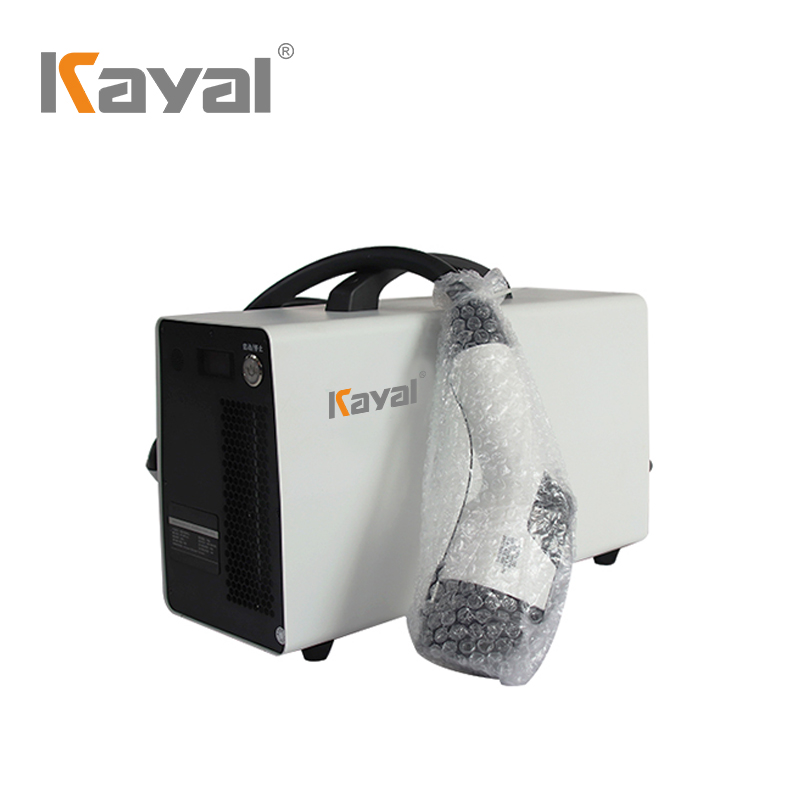

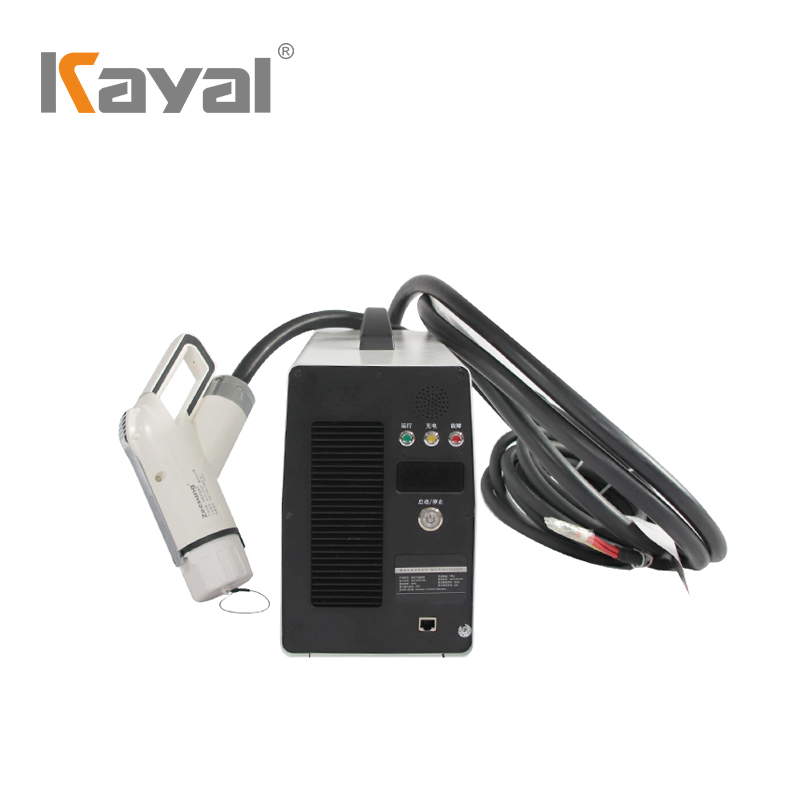

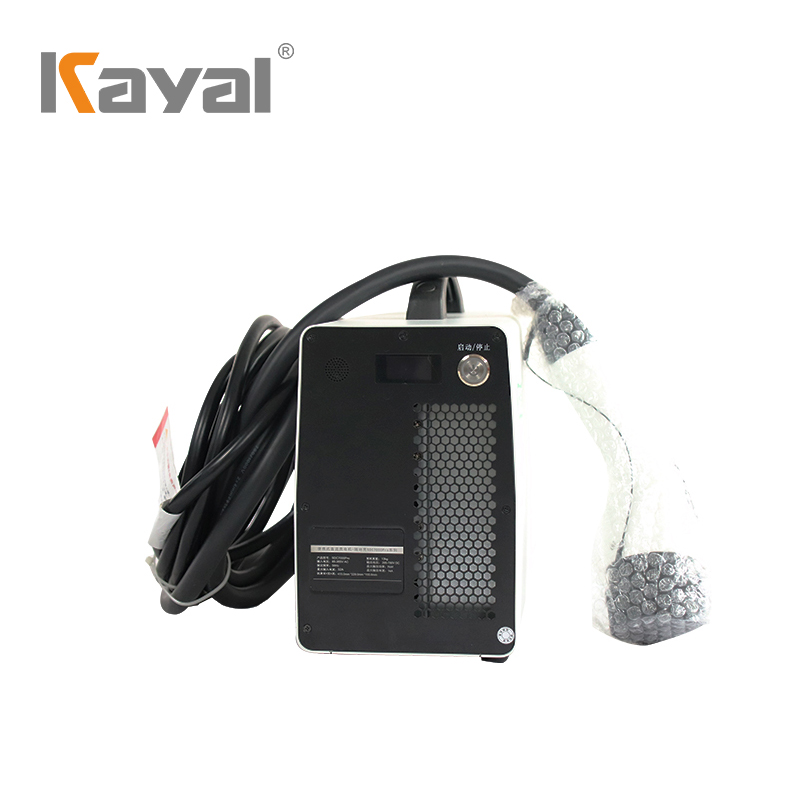

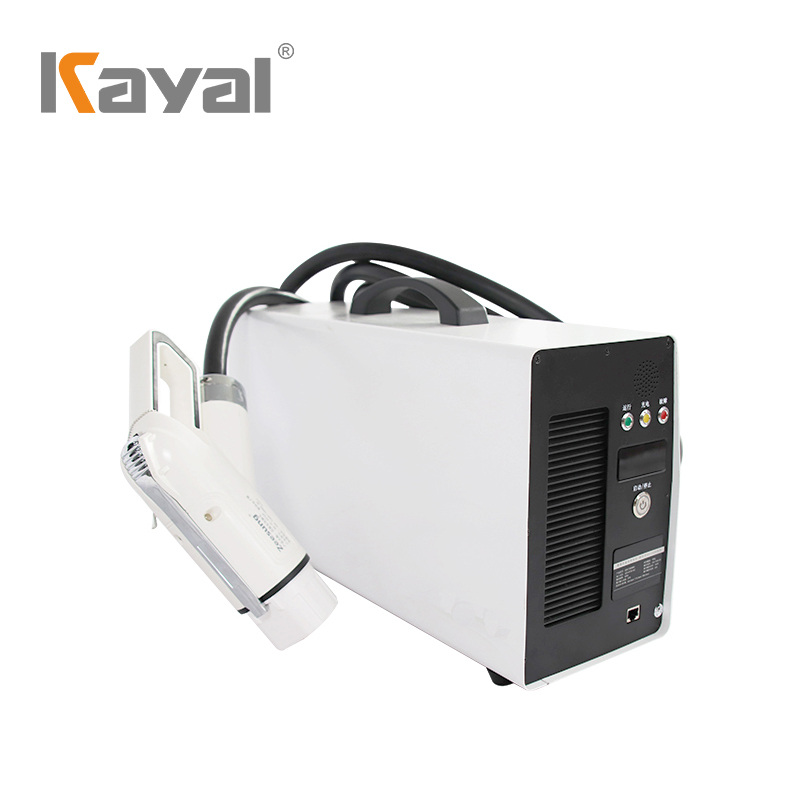

| Installation method | Portable | |
| Way of routing | After going in and out | |
| Equipment size | 345*175*265 | |
| Input voltage | AC220V±20% | |
| Input frequency | 45~65Hz | |
| The output voltage | 200V-450V | |
| Single gun output current range | 0-15A | |
| The output voltage | 250V-750V | |
| Single gun output current range | 0-11A | |
| Cable length | 5m (gun line 2m) | |
| Measurement accuracy | Level 0.5 | |
| Current limit protection value | ≥110% | |
| Voltage regulation accuracy | ≤±0.5% | |
| Steady flow accuracy | ≤±1% | |
| Ripple coefficient | ≤±0.5% | |
| effectiveness | ≥94.5% | |
| Power factor | ≥0.99 (50% load or more) | |
| Harmonic content THD | ≤5% (50% load or more) | |
| HMI | LED indicator | |
| Charging mode | Automatic charging | |
| payment method | no | |
| Communication Interface | no | |
| Executive standard | GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008 | |
| security function |
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, leakage protection |
|
| Operating temperature | -25°C~+50°C | |
| Working humidity | 5%~95% non-condensing cream | |
| Working elevation | <3000m | |
| Protection level | IP20 | |
| cooling method | Air cooled | |
| Noise control | ≤55dB | |
| MTBF | 100,000 hours |
