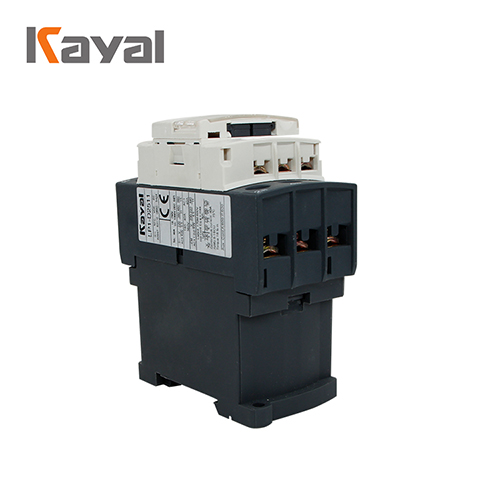

New LP1-D 12V DC Contactor for Homes & Offices
| Type |
reted woring currentA IeA (AC-3) |
Rated heat current Ith (A) |
rated working voltage UeA |
rated insulated voltage UiA |
controlled power KW |
Electrical life (AC-3)104 |
contacts number |
||||
| 220V | 380V | 415V | 440V | 660V | |||||||
| LP1-D09 | 9 | 20 | 380v 660v | 660v | 2.2 | 4 | 4 | 4 | 5.5 | 660V | |
| LP1-D12 | 12 | 20 | 380v 660v | 660v | 3 | 5.5 | 5.5 | 5.5 | 5.5 | 660V | |
| LP1-D18 | 18 | 32 | 380v 660v | 660v | 4 | 7.5 | 9 | 9 | 9 | 660V | |
| LP1-D25 | 25 | 40 | 380v 660v | 660v | 5.5 | 11 | 11 | 11 | 11 | 660V | 3P+NO |

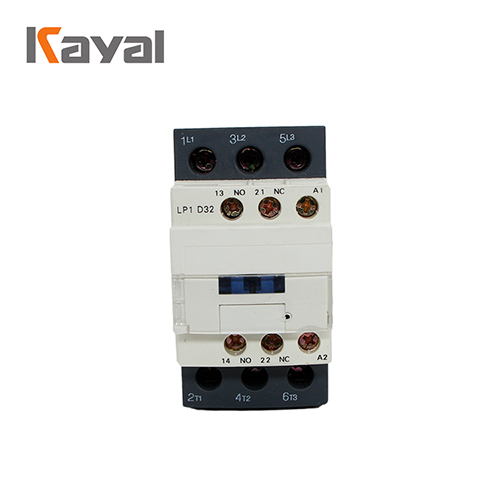

| LP1-D32 | 32 | 50 | 380v 660v | 660v | 7.5 | 15 | 15 | 15 | 18.5 | 660V | 3P+NC |
| LP1-D40 | 40 | 60 | 380v 660v | 660v | 11 | 18.5 | 22 | 22 | 30 | 660V | |
| LP1-D50 | 50 | 80 | 380v 660v | 660v | 15 | 22 | 25 | 30 | 33 | 660V | 3P+NO+NC |
| LP1-D65 | 65 | 80 | 380v 660v | 660v | 18.5 | 30 | 37 | 37 | 37 | 660V | |
| LP1-D80 | 80 | 125 | 380v 660v | 660v | 22 | 37 | 45 | 45 | 45 | 660V | |
| LP1-D95 | 95 | 125 | 380v 660v | 660v | 25 | 45 | 45 | 45 | 45 | 660V |
