Premium Quality AC Magnetic Contactor
Application

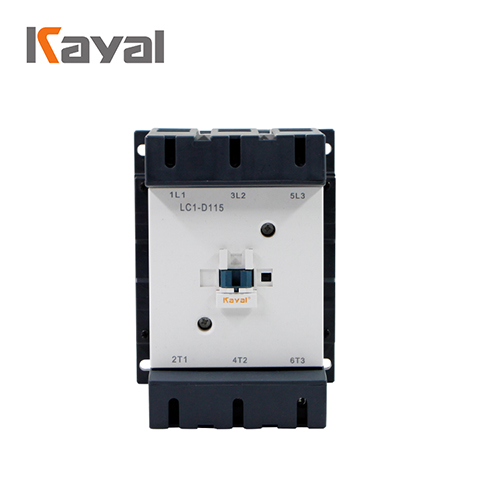

1. CJX2-D115 (LC1 D115) AC Contactor (Magnetic Contactor/Reversing Contactors and Latching Contactors) composed of contacts, electromagnet and enclosure, are designed to be directly connected to high-current load devices.
2. The AC contactors suitable for using in the circuits up to the rated voltage 600V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & machine-interlocking device etc.
3. It becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
4. With the thermal relay, it is combined into the electromagnetic starter.
5. The contactor is produced according to IEC947-2, VDE0660 & BS545.
Specifications
| Type | CJX2-D115 | CJX2-D150 | CJX2-D170 | CJX2-D205 | CJX2-D245 | CJX2-D300 | CJX2-D410 | CJX2-D475 | CJX2-D620 | |
|
Rated working current (A) |
AC3 | 115 | 150 | 170 | 205 | 245 | 300 | 410 | 475 | 620 |
| AC4 | 52 | 60 | 75 | 85 | 105 | 117 | 138 | 147 | 180 | |
|
Standard power ratings of 3-phase motors50/60Hz incategory AC-3 |
220/230V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 |
| 380/400V | 55 | 75 | 90 | 110 | 132 | 160 | 220 | 265 | 335 | |
| 415V | 59 | 80 | 100 | 110 | 132 | 180 | 220 | 280 | 375 | |
| 500V | 75 | 90 | 110 | 129 | 160 | 200 | 250 | 355 | 400 | |
| 660/690V | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 355 | 450 | |
| Rated heat current (A) | 200 | 250 | 250 | 275 | 315 | 400 | 500 | 700 | 1000 | |
| Electrical life | AC3 (x104) | 200 | 60 | 60 | 50 | 50 | 50 | 30 | 30 | 20 |
| AC4 (x104) | 15 | 15 | 15 | 15 | 15 | 15 | 8 | 8 | 5 | |
| Mechanical life (x104) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 100 | 100 | 100 |
