Solar PV Combiner Box KYV-AC08

Solar PV Combiner Box KYV-AC08

Categories
AC combiner box
Brand
Kayal
Model
@Model["xinghao"]
FOB Port
Ningbo/Shanghai
Terms of Payment
Western Union,T/T,Paypal
Update
2021/04/02
feedback
Solar PV Combiner Box KYV-AC08 Solar PV Combiner Box KYV-AC08 Solar PV Combiner Box KYV-AC08 Solar PV Combiner Box KYV-AC08
Product Description

Product Description

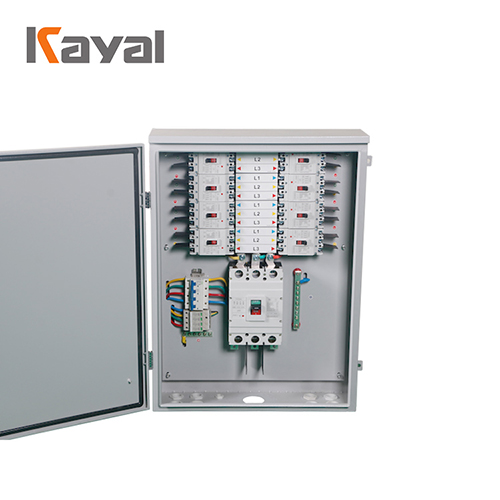

Solar PV Combiner Box in grid tie system is used to bring together the output of multiple PV inverters and then connect to the grid. It could lessen the cable for the connecting between inverters and the grid. To a large extent it reduces distribution material cost and workload.

Technical Data

MODEL KYC-CD1 KYC-CD08
Max. input voltage 600 Vac ± 15% 600 Vac ± 15%
Rated insulation voltage 690 Vac 690 Vac
Rated frequency 50 Hz 50 Hz
Rated working current of branch 50 A 50 A
Rated working current of Bus 300 A 350 A
Valid value of rated short-timewithstand current Icw (1 s) (KA) 10 10
Max. value of rated short-timewithstand currentIpk (KA) 10 10
Low frequency withstand voltage for1min 2500 Vac 2500 Vac
IP rating IP 65; IP 20 after open the door IP 65; IP 20 after open the door
Lightning protection level Class C Class C
Fire-resistance rating UL 790 – Class C UL 790 – Class C
Service life More than 10 years More than 10 years
Mounting Wall bracket Wall bracket
Cable entry & exit Bottom entry / exit Bottom entry / exit
Dimensions (W×D×H) (mm) 720 × 850 × 190 720 × 850 × 190

Operating Environment Parameters

Environment     Operating enviroment Transport environment Storage environment
Item   Parameter
Climatic condition Temperature Low temperature -25°C -40°C -40°C
High temperature +55°C +70°C +70°C
Low relative humidity 0.05 / 0.05
High relative humidity 0.95 / 0.95
Condensing None / None
Altitude Low altitude 0 0 0
High altitude 3000 m 3000 m 3000 m



AC Combiner Box KYV-AC08AC Combiner Box KYV-AC08
