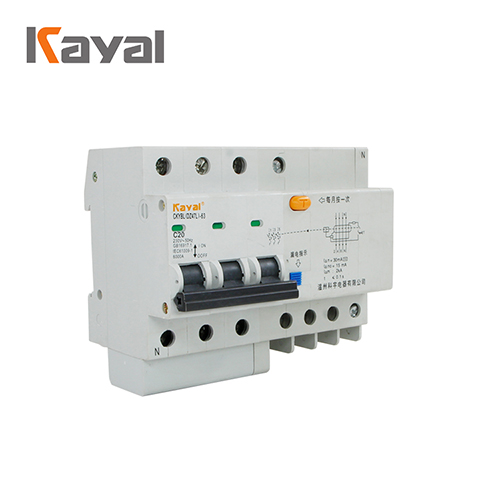

● Residual Current Circuit Breaker With Overcurrent Protection
●Compact structure, small volume, (two modules in width)
●With short circuit, overload and residual current protection
●Action function has nothing to do with main circuit voltage
●With midline cut-off functions, it is safer and more reliable.
●With double functional connection terminals, it has strong connection ability.
●With contact state indicator, it is easy to recognize the contact situation.
●Different handle colors are used to indicate different rated current.
●High breaking capacity:10KA
●With wide range of rated current, it can be used as family main switch
●United accessories series
●Type c can provent the error tripping caused by electric equipment
|Pole No.||2 Pole|
|Rated Current||Type C6,10,13,16,20,25,32,40A
|Rated eakage Current I||30,100ma|
|Tripping Time||G Minimum 10ms for prolonging|
|Breaking Capacity Icn||10KA|
|Grade of Protection||IP40|
|Service Life||Electric:no less than 4000
timesMachanic:no less than 20000 tim
|Terminal Connection||Wire 1-25 square micron
Bus-bar row thickness 0.8-2mm
|Shell width||Din Rail 35mm(Two modulus in widtth)|
