AC Miniature Circuit Breakers

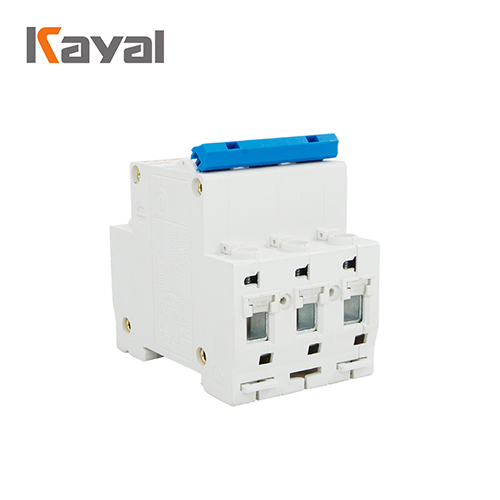

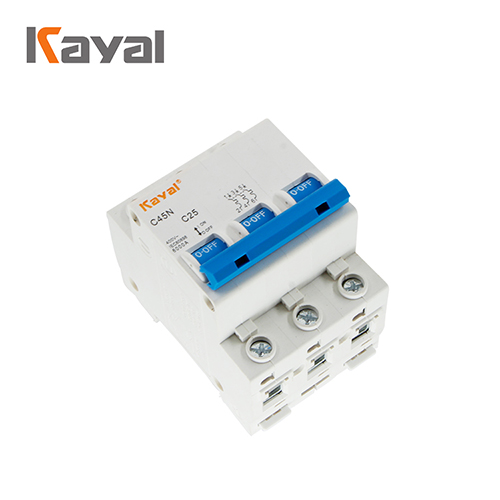

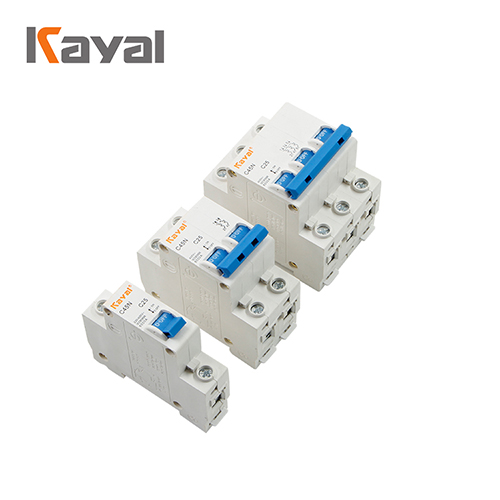

Mini Circuit Breaker 22C45N

Mini Circuit Breaker 22C45N

Categories
AC Miniature Circuit Breakers
Brand
Kayal
Model
@Model["xinghao"]
FOB Port
Ningbo/Shanghai
Terms of Payment
Western Union,T/T,Paypal
Update
2021/04/02
feedback
Mini Circuit Breaker 22C45N Mini Circuit Breaker 22C45N Mini Circuit Breaker 22C45N Mini Circuit Breaker 22C45N
Product Description

APPLICATIONS:

C45N Mini Circuit Breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product,with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

Standard Rated Current (A) Pole Voltage(V) Breaking Capacity(A)
BS3871-1 IEC60898 1 to 40 50 to 63 1 240 6000
BS3871-1 IEC60898 1 to 40 50 to 63 2,3,4 415 6000
IEC157-1 50 to 63 1 240 4000
IEC157-1 50 to 63 2,3,4 415 4000
IEC157-1 1 1 220/240 10000
IEC157-1 1 2,3,4 220/240 20000
IEC157-1 1 2,3,4 380/415 10000
IEC157-1 3 1 220/240 8000
IEC157-1 3 2,3,4 220/240 20000
IEC157-1 3 2,3,4 380/415 8000
IEC157-1 10 to 40 1 220/240 7000
IEC157-1 10 to 40 2,3,4 220/240 16000
IEC157-1 10 to 40 2,3,4 380/410 8000
IEC157-1 50 1 220/240 6000
IEC157-1 50 2,3,4 220/240 10000
IEC157-1 50 2,3,4 380/410 6000
IEC157-1 63 1 220/240 5000
IEC157-1 63 2,3,4 220/240 10000
IEC157-1 63 2,3,4 380/410 5000
Standard Rated Current (A) Pole Voltage(V) Breaking Capacity(A)
BS3871-1 IEC60898 1 to 40 1 240 4000
BS3871-1 IEC60898 1 to 40 2,3,4 415 4000
IEC157-1 1 to 40 1 220/240 6000
IEC157-1 1 to 40 2,3,4 220/240 12000
IEC157-1 1 to 40 2,3,4 380/415 6000


22C45N MCB
